DC-DC converter Module

Power Over Ethernet Solution (PoE)

- INFORMATION -

Ag7100

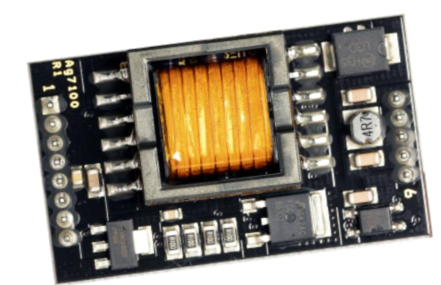

Silvertel have developed a 40W DC-DC boost converter, including isolation to meet the requirements of IEEE802.3af and IEEE802.3at. It is a perfect complement for Ag6100 in PSE designs. Designed as a wide ranging input module for nominally 12V to 24V, it generates an isolated and regulated 48V-57V DC output. This module is an ideal compact solution for generating the higher voltages needed for POE 802.3af and POE+ 802.3at PSE designs in POE applications. The small footprint and low cost modular design, with minimal external components required, mean it is well suited to any 12 or 24V to 48V boost circuit application. See Documentation for the product datasheet for this module.

Ag7100 Block Diagram

Ag7100-Block-Diagram

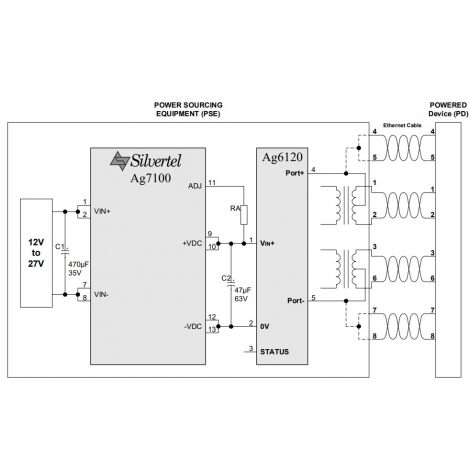

Ag7100 is typically used to generate the higher (48 to 57V) DC voltages required at the input to an Ag6100, and in this application would be connected as follows:

Ag7100 Key Features :

40W maximum output power	Adjustable output from 48V to 57V DC
Wide input supply from 11V to 27V DC	1.5kV Isolation compliant with IEEE802.3af/at
Small footprint- 51mm(L) x 30mm(W) x16mm(H)	Over current, thermal & short circuit protection
Suitable for IEEE802.3af and IEEE802.3at designs	Only two external components required
