Product Description

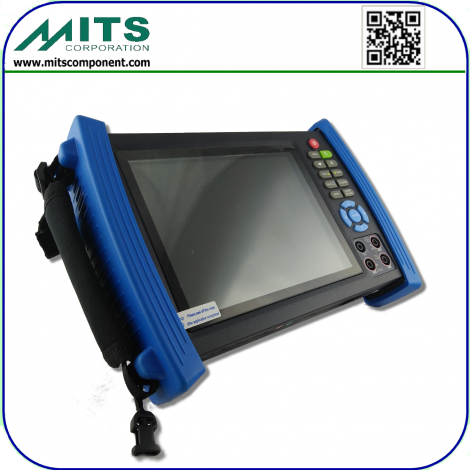

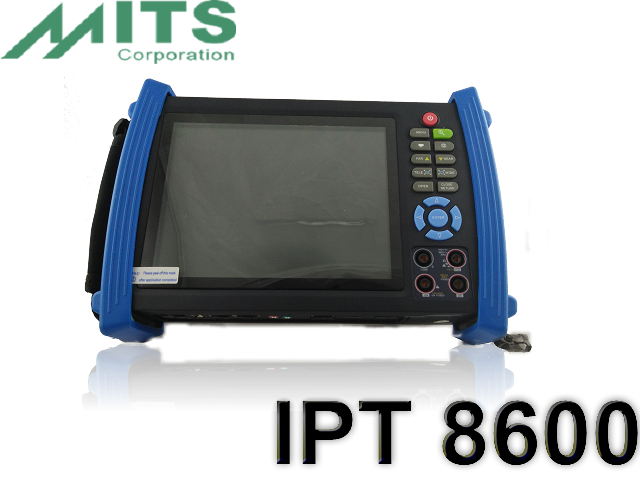

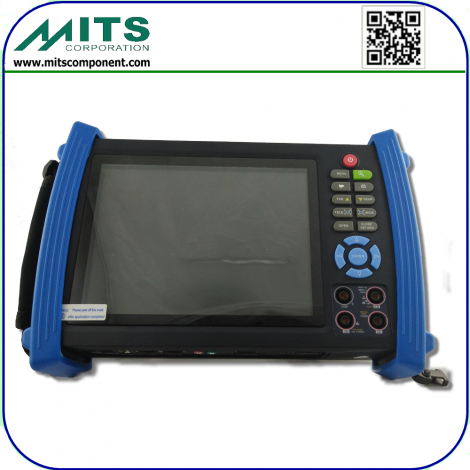

Part number:  IPT-8600
Application

—  CCTV system installation and maintenance

—  Network cabling project installation and maintenance

—  Dome camera, IP TVI CVI AHD SDI 4K H.265 camera testing

—  Video transmission channel testing

—  PTZ controller

elow functions are customizable (If add any below function into tester, you need pay addition cost),full model is IPC-8600MOVTADHS plus

M*

Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement

O*

Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~ +10 dBm, for optical power testing and Fiber link loss relative measurement

V*

Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM

T*

TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM

A*

AHD camera test5MP TVI camera test,2560x1944P 12.5FPS, UTC control/ call OSD menu

H*

TVI camera test: 5MP TVI camera test,2560x1944P 12.5FPS, UTC control/ call OSD menu

D*

CVI camera test : 4MP CVI camera test,2560x1440P 25F/30F,UTC control d call OSD menu

S*

HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS

ADH*

5MP TVI ,4MP CVI ,4MPAHD test

ADHS*

5MP TVI ,4MP CVI ,4MP AHD ,HD SDI/EX-SDI test

L*

Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement (free )

C*

Cable tracer :search BNC cable, network cable and telephone cable from the mess cable (free)


Packaging & Shipping


Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMSair or ocean shipment

Accept small, trial orders, and customised orders too!

If there is any product information needed, please contact us or consult online.
