Product Description
Part number:  WFT-2458
Hardware
Processor Intel PXA270 520MHz 32 bits RISC
Memory 128 MB SDRAM and 128 MB Flash ROM
Band 802.11 A/B/G/N, 5 dBi Dual Band Detachable Antenna x2
Antenna Connector RP-SMA Jack
Portable Yes
USB One USB port built in
Display 240 x 320, 3.5” Color TFT Display
Keyboard 1 Numeric Keyboard with LED backlight
Codec Wolfson WM9705 AC’ 97 codec with Touch screen controller
Battery 3000mAH, 7.4V Li-Ion battery pack/ One rechargeable backup battery
Dimension 192.5mm (L) x 91.3mm / 78mm (W) x 42.2mm / 60.6mm (H)
Weight 560g with Standard Battery Pack
OS WinCE. NET5.0 Professional
Environmental Operation: -10~50℃ Storage: -20~79℃
Humidity: Operation- 10%~80%
Certification IP54Certificated, IP64 compliant 1.2m (4ft) drop to concrete certificated/1.5m (5ft) drop to concrete, System no broken.

Features
Sensitivity Up to -100 dbm
Instant Power On Yes
Operation Eas
Equipment Design Industrial PDA
Continuous Operation 4 Hrs
Defense IP64 Water-Proof / Dust-Proof Passable with dropping to Concrete Ground from 1.5Meters
Package Dual-Purpose Holster Usage for Shoulder and Waist
Data Output USB / USB host Cable
Signal Strength Test Yes, All Channels
Usage of Channel (Quantity of Base Station in each Channel) Yes
Score of Channels Yes
Scanning Base Station A/B/G in the same time
Information of Base Station SSID/BSSID/RSSI, Sorting, Channel Selection
Base Station Tracing Yes
Information of Specified Base Station Yes
Roaming-Test Report Yes
Security’s Detecting Yes
Clients’ Status of Specified Base Station Yes
Status of Base Station Data Rate (54/48/../6/11/../1 Mbps Frame (Ctl/Mgt/Data/Error/retry)
Rogue AP Detecting Yes
Rogue Client Detecting Yes
Linking Test Offer the ratio of transition and Revelation of Signal’s Strength

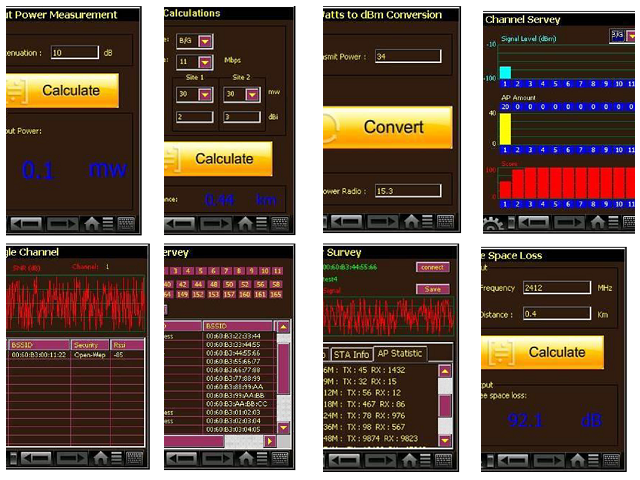

Auxiliary Tools Free Space Loss /Power Meter /Distance Calculation /Conversion (mW/dBm) AP Detector /Client Finder

Packaging & Shipping


Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMSair or ocean shipment

Accept small, trial orders, and customised orders too!


Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
