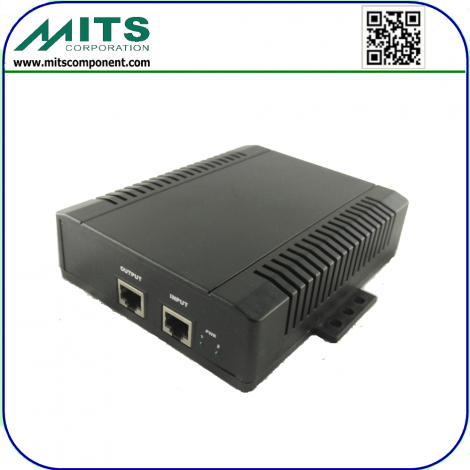

Product Description
Part number: POE-USP-8012NN8
Description: 80W/12Vdc output, No optional function

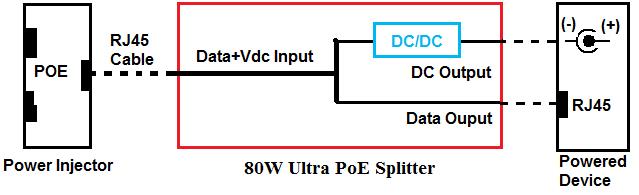

Application
· For PDs which need ultra power.(<80W)

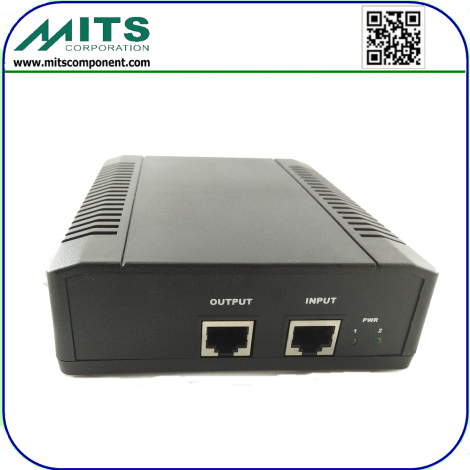

| RJ-45 Input (Data & Power) | ||
| Pin | Symbol | Description |
| 1 | BI_DA+, Vin A+/ | Data Pair A+, Feeding power A+/ |
| 2 | BI_DA-, Vin A+/- | Data Pair A-, Feeding power A+/- |
| 3 | BI_DB+, Vin A+/- | Data Pair B+, Feeding power A+/- |
| 4 | BI_DC+, Vin B+/- | Data Pair C+, Feeding power B+/- |
| 5 | BI_DC-, Vin B+/- | Data Pair C-, Feeding power B+/- |
| 6 | BI_DB-, Vin A+/- | Data Pair B-, Feeding power A+/- |
| 7 | BI_DD+, Vin B+/- | Data Pair D+, Feeding power B+/- |
| 8 | BI_DD-, Vin B+/- | Data Pair D+, Feeding power B+/ |
| 9 | Shield | Connector shielding |
| RJ-45 Output (Data Only) | ||
| Pin | Symbol | Description |
| 1 | BI_DA+ | Data Pair A+ |
| 2 | BI_DA- | Data Pair A- |
| 3 | BI_DB+ | Data Pair B+ |
| 4 | BI_DC+ | Data Pair C+ |
| 5 | BI_DC- | Data Pair C- |
| 6 | BI_DB- | Data Pair B- |
| 7 | BI_DD+ | Data Pair D+ |
| 8 | BI_DD- | Data Pair D- |
| 9 | Shield | Connector shielding |

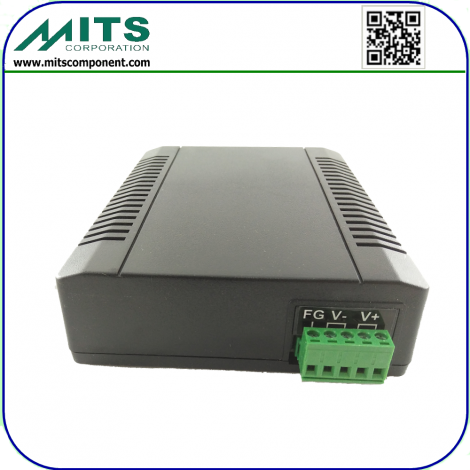

Note : 1. DC output and Vin+/- should not be shorted to ground(FG).
Packaging & Shipping

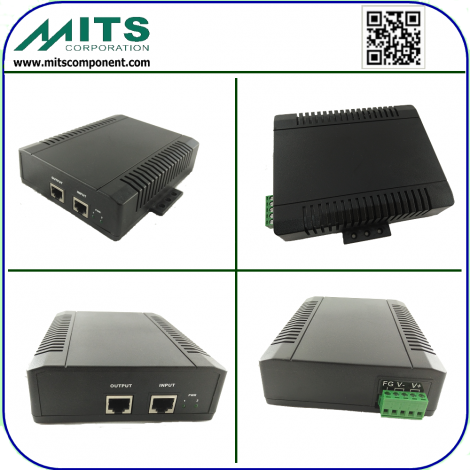

Mechanical & Dimension
| Plastic Case Material | PC |
| Plastic Case Finish | Texture |
| Plastic Case Color | Gray |
| Plastic Case Dimension | 86 x 76 x 36 (L x W x H) mm. |
Package
| Number of unit in one Carton | 20 |
| Weight of Carton Volume | N.W.：7Kg. G.W.：8Kg. 1.8Cuft. |
| Dimension of Box | 267 x 160 x 45 (L x W x H) mm |
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
