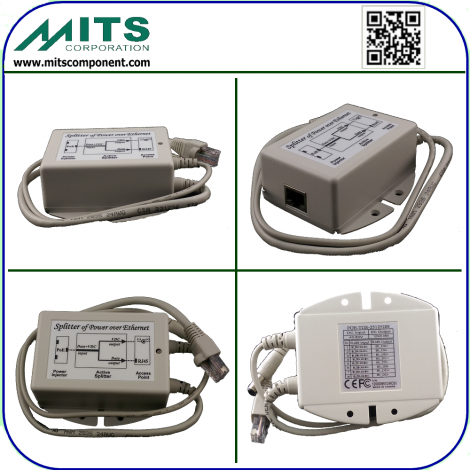

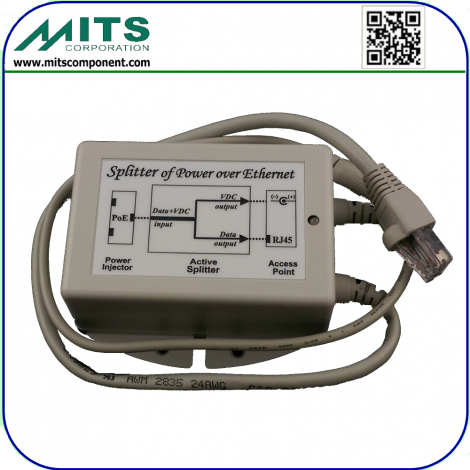

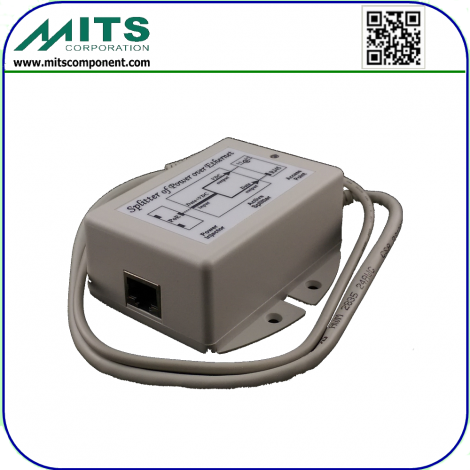

Product Description

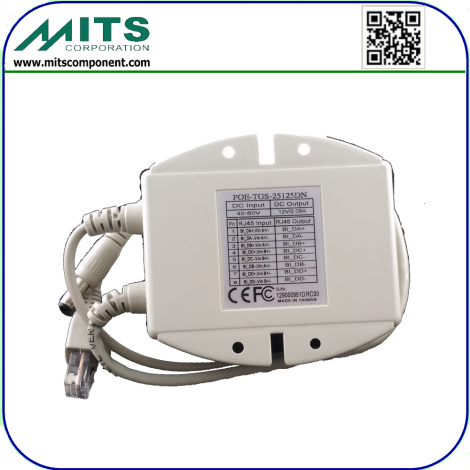

Part number: POE-TGS-25121DN
Description: 25W/12V ,5.5mm/2.1mm DC plug
Application
· IP Phone
· IP Camera
· Access Point
· Door Security
· Security CAM
· Network terminals which require power under 25W

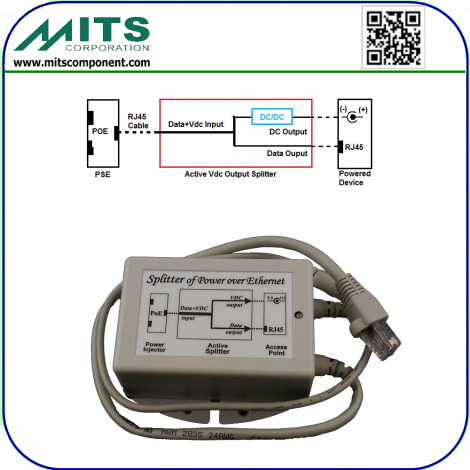

PSE feeds power via Spare pairs
| RJ-45 Input (Data & Power) | RJ-45 Output (Data Only) | |||
| Pin | Symbol | Description | Symbol | Description |
| 1 | Rx+ | Data Receive | Rx+ | Data Receive |
| 2 | Rx- | Data Receive | Rx- | Data Receive |
| 3 | Tx+ | Data Transmit | Tx+ | Data Transmit |
| 4 | Vin +/-, Data | Feeding power(±), Data | Data | Data |
| 5 | Vin +/-, Data | Feeding power(±), Data | Data | Data |
| 6 | Vin +/-, Data | Data Transmit | Vin +/-, Data | Data Transmit |
| 7 | Vin +/-, Data | Feeding power(±), Data | Data | Data |
| 8 | Vin +/-, Data | Feeding power(±), Data | Data | Data |
PSE feeds power via Data
| RJ-45 Input (Data & Power) | RJ-45 Input (Data & Power) | |||
| Pin | Symbol | Description | Symbol | Description |
| 1 | Rx+ & Vin(±) | Data Receive & Feeding power(±) | Rx+ | Data Receive |
| 2 | Rx- & Vin(±) | Data Receive & Feeding power(±) | Rx- | Data Receive |
| 3 | Tx+ & Vin(±) | Data Transmit & Feeding power(±) | Tx+ | Data Transmit |
| 4 | Data | Data | Data | Data |
| 5 | Data | Data | Data | Data |
| 6 | Tx- & Vin(±) | Data Transmit & Feeding power(±) | Tx- | Data Transmit |
| 7 | Data | Data | Data | Data |
| 8 | Data | Data | Data | Data |
Packaging & Shipping
Mechanical & Dimension
| Plastic Case Material | PC | |
| Plastic Case Finish | Texture | |
| Plastic Case Color | Gray | |
| Plastic Case Dimension | 85 x 76 x 36 (L x W x H) mm | |
| Weight | 150g | |
| DC/AC Out Power Plug | Diameter | 2.1 / 5.5mm or 2.5 / 5.5mm |
| Length | 12 +/- 0.5mm. 180℃ angle | |
| Polarity | Inside (+) / Outside (-) | |
Package
| Number of unit in one Carton | 100 |
| Weight of Carton Volume | N.W.：17Kg. G.W.：19Kg. 1.9Cuft. |
| Dimension of Box | 120 x 85 x 40 (L x W x H) mm |
Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is:Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
