Product Description
Part number:

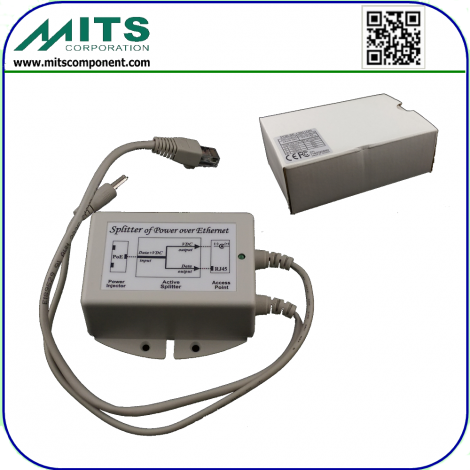

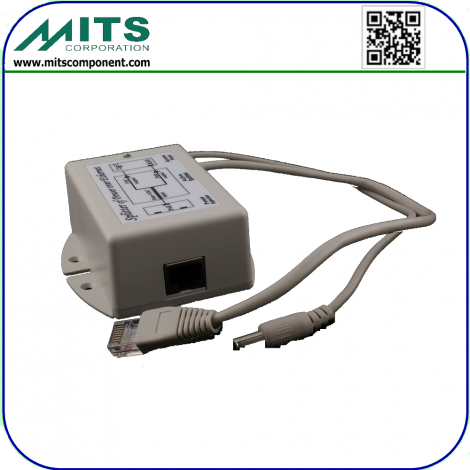

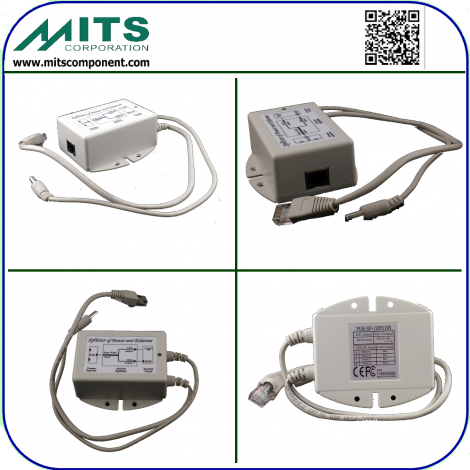

POE-SP-12121DN
Description:  12W/12V ,5.5mm/2.1mm DC plug

Application
·         IP Phone

·         IP Camera
·         Access Point
·         Door Security
·         Security CAM
·         Network terminals which require power under 12W
PSE feeds power via Spare pairs
  RJ-45 Input (Data & Power) RJ-45 Output (Data Only)
Pin Symbol Description Symbol Description
1 Rx+ Data Receive Rx+ Data Receive
2 Rx- Data Receive Rx- Data Receive
3 Tx+ Data Transmit Tx+ Data Transmit
4 Vin +/- Feeding power(±) NC Not Connected
5 Vin +/- Feeding power(±) NC Not Connected
6 Tx- Data Transmit Tx- Data Transmit
7 Vin +/- Feeding power(±) NC Not Connected
8 Vin +/- Feeding power(±) NC Not Connected

PSE feeds power via Data pairs
  RJ-45 Input (Data & Power) RJ-45 Output (Data Only)
Pin Symbol Description Symbol Description
1 Rx+ & Vin(±) Data Receive & Feeding power(±) Rx+ Data Receive
2 Rx- & Vin(±) Data Receive & Feeding power(±) Rx- Data Receive
3 Tx+ & Vin(±) Data Transmit & Feeding power(±) Tx+ Data Transmit
4 NC Not Connected NC Not Connected
5 NC Not Connected NC Not Connected
6 Tx- & Vin(±) Data Transmit & Feeding power(±) Tx- Data Transmit
7 NC Not Connected NC Not Connected
8 NC Not Connected NC Not Connected

Packaging & Shipping

Mechanical & Dimension
Plastic Case Material PC
Plastic Case Finish Texture
Plastic Case Color Gray
Plastic Case Dimension 85 x 76 x 36 (L x W x H) mm
Weight 150g
DC/AC Out Power Plug Diameter 2.1 / 5.5mm or 2.5 / 5.5mm
Length 12 +/- 0.5mm. 180℃ angle
Polarity Inside (+) / Outside (-)

Package
Number of unit in one Carton 100
Weight of Carton Volume N.W.:17Kg. G.W.:19Kg. 1.9Cuft.
Dimension of Box 120 x 85 x 40 (L x W x H) mm


Lead Time: 4~8 weeks
We ship whatever you ask, by DHL/UPS/FEDEX/EMSair or ocean shipment

Accept small, trial orders, and customised orders too!

Please note: All of our product's delivery term is:
Ex-work Taiwan
If there is any product information needed, please contact us or consult online.
